RadContour feature factsheet
A complete radiotherapy image-review and contouring workspace for iPad. Real DICOM in, real DICOM out — no cloud, no upload; everything runs on the device. This factsheet lists every tool and feature, organised by the workspace tab it lives in.
Research, education and training tool. Not a certified medical device. RadContour is not intended for diagnosis, treatment planning, treatment delivery or any patient-care decision. Every automatic result must be reviewed against the images by a qualified professional.
The workspace at a glance
RadContour opens to a patient library, then into a multi-planar workspace with six function tabs on the ribbon:
| Tab | What it's for |
|---|---|
| Patient Data | Load image sets, structure sets, ground truth; switch reference |
| Contouring | Draw and edit ROIs by hand and with AI |
| ROI Geometry | Derive ROIs from existing ones — margins, algebra, thresholds, walls, body |
| Registration | Align a second image set and copy contours across |
| Contour Assessment | Score contours against a reference set |
| Plan Evaluation | Dose wash, DVH, dose statistics, clinical goals |
Any pane can show axial, sagittal, coronal or 3D; layouts are configurable.
Patient library & import
- Patients auto-group from the DICOM Patient ID; expand to Study → Series / RT Structure Set / Registration / Plan / Dose.
- Import from Files (a folder of DICOM), or query a DICOM server.
- Per-patient edit, merge, delete; per-item swipe-to-delete.
- Encrypted patient backup / restore (
.rcbak), single or bulk. - Received-from-PACS studies arrive as notifications and open in place.
DICOM networking
Classic DIMSE, on a hospital-managed network:
- C-ECHO (verification), C-FIND (Study-Root query), C-GET (retrieve — no C-MOVE needed), C-STORE (send, and receive as SCP).
- Configurable local AE / port and a list of remote nodes (PACS / TPS).
- Storage SCP to receive pushes, restricted to configured nodes (allowlist).
- Uncompressed Implicit / Explicit VR Little Endian.
1 · Patient Data tab
- Open for contouring — load an image set as the editable reference.
- Load for fusion / registration — bring in a second image set.
- Load as Ground Truth — a read-only reference set for Contour Assessment.
- Structure sets — load any RT Structure Set of the patient onto the images.
- Switch reference image set in place — contour on MR, copy to CT via a saved registration, without leaving the workspace.

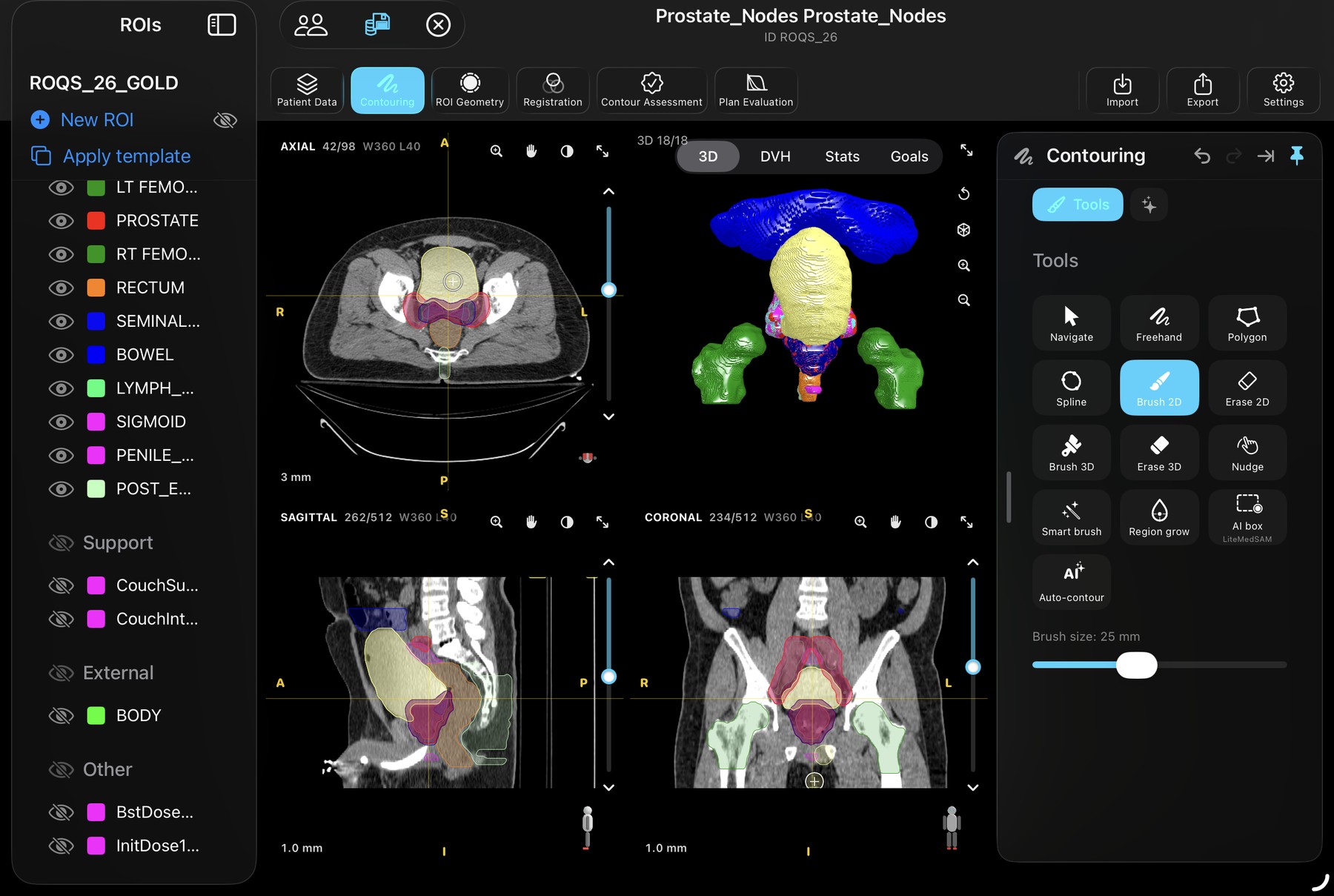

2 · Contouring tab
Thirteen tools in all — twelve in the top grid, plus the AI auto-contour tile below (brush size shown only when a brush-type tool is active):
| Tool | Does |
|---|---|
| Navigate | Scroll / zoom / pan without drawing |
| Freehand | Draw a contour by hand |
| Polygon | Click vertices; closes to a polygon |
| Spline | Smooth spline through control points |
| Brush 2D | Paint on the current slice |
| Erase 2D | Erase on the current slice |
| Brush 3D | Paint a sphere across slices |
| Erase 3D | Erase a sphere across slices |
| Nudge | Push a contour edge in or out (in/out cursor) |
| Smart brush | Paints only within an HU tolerance of the first touch |
| Region grow | Flood-fill from a seed within a threshold |
| AI box | Draw a box; an on-device model segments inside it |
Auto-contour with AI
A dedicated tool tile:
- Pick a model, then an organ preset (or "All organs"), then Run.
- 25 TotalSegmentator organ models (CT + MR) plus the composite whole-body models, all on-device.
- You pre-select organs via editable presets — never forced to run all 117.
- Progress ring on the tile; results reviewed before use.
- On a non-M iPad the tool explains it needs Apple silicon (a soft warning — the rest of the app still works).
Suggest contour (box-prompted)
LiteMedSAM / RepViT-MedSAM medical SAM models, or a classical heuristic, selectable in Settings.
ROI management
- Unlimited ROIs, colour-coded, category-grouped (OAR / target / other).
- Per-ROI visibility, colour, name, type; 3D surface preview.
- Undo / redo; volume (cc) per ROI.
3 · ROI Geometry tab
Derive a new ROI from existing ones (RayPlan-style), each with a live preview and an editable, auto-suggested name:
- Margin — uniform or anisotropic expand / contract.
- Algebra — Boolean union / intersection / subtraction of ROIs.
- Threshold — build an ROI from an HU window, with an enclosed-region fill.
- Wall — a shell of a given inner / outer thickness.
- External — automatic patient outline from the image, lungs included, with a two-slider live preview and a suggested setting.

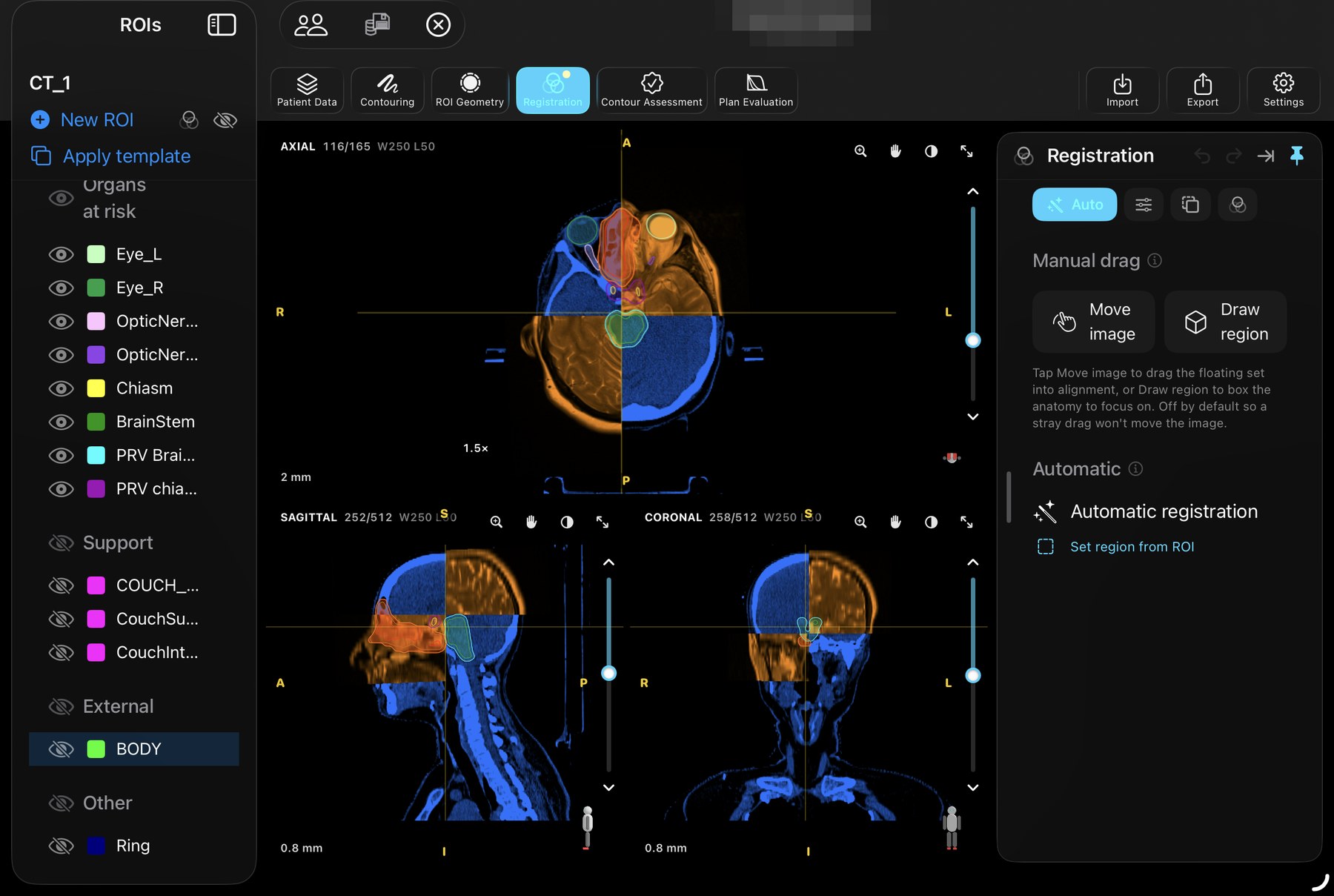

4 · Registration tab
Sub-tabbed by method:
- Auto — mutual-information rigid registration (Mattes MI, configurable metric / optimizer).
- Manual — drag / rotate to align by hand.
- ROI — structure-guided registration from matched ROI pairs.
- Fusion display — Overlay, Checkers, Difference, adjustable blend.
- Copy geometries — resample selected ROIs onto the registered set and save as a new RT Structure Set.
- Import and export DICOM Spatial Registration (REG), including the inverse.

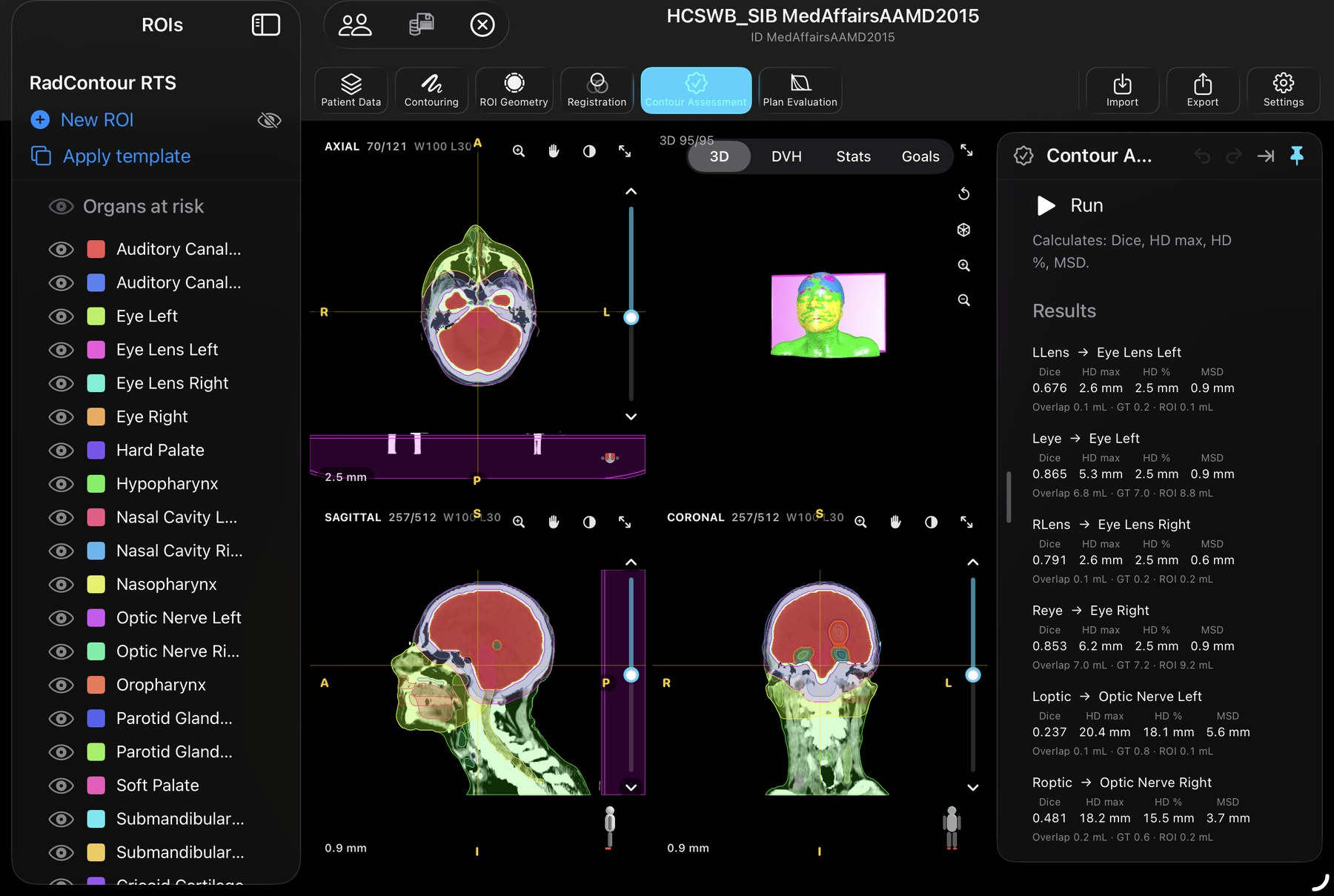

5 · Contour Assessment tab
Score an editable set against a loaded Ground Truth:
- Dice similarity coefficient.
- Hausdorff distance — maximum (mm).
- Hausdorff distance — percentile (configurable, e.g. 95 %).
- Mean (average symmetric) surface distance (mm).
- Per-structure mapping; overlap fill; results table with a metric guide.
6 · Plan Evaluation tab
Load RT Dose / RT Plan on the reference CT:

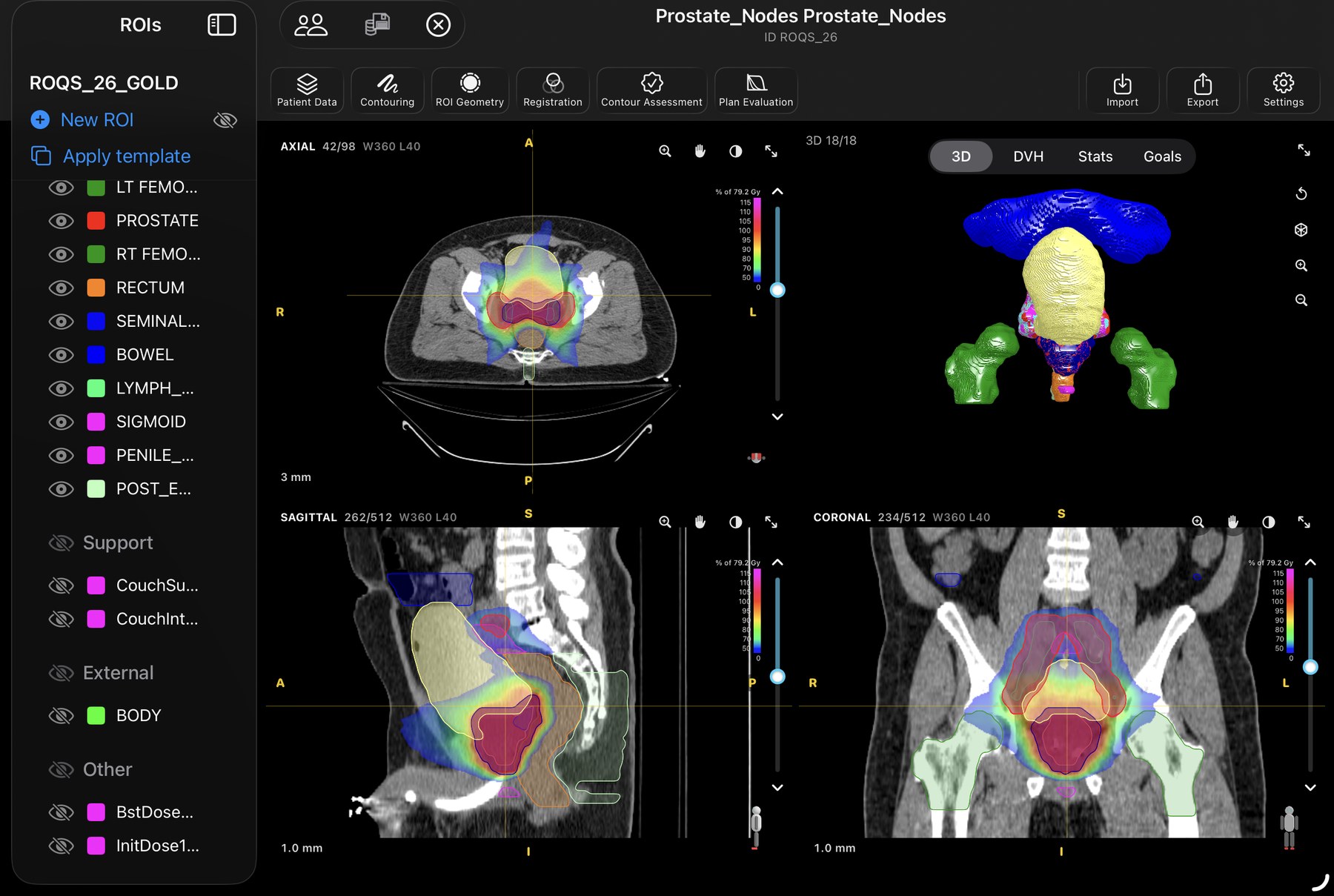

- Isodose wash (blue→red, normalised to the reference dose) and isodose lines, with editable levels (%, absolute cGy, colour). Drag the arrows on the colour legend to set the displayed dose range directly on the image.

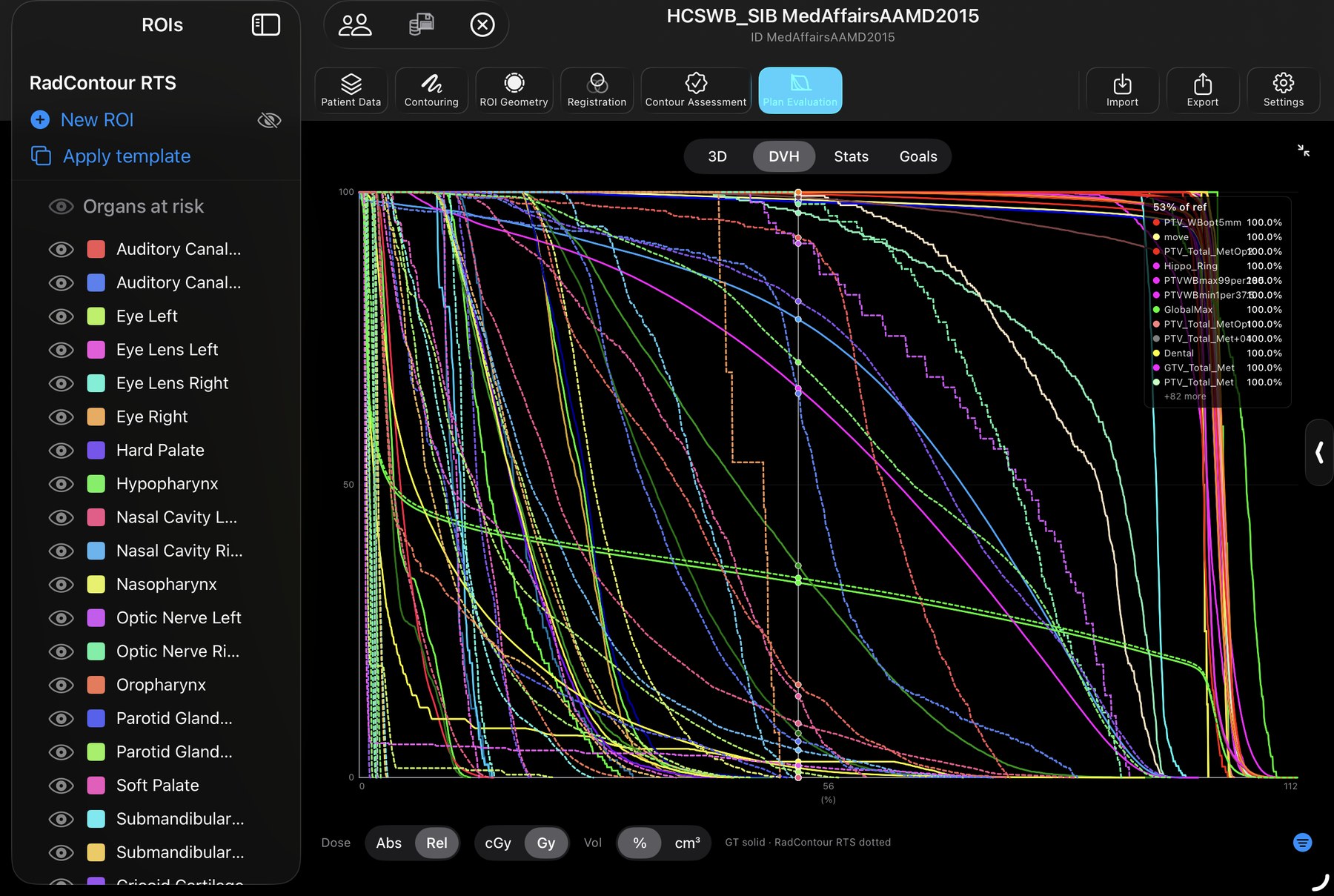

- DVH — cumulative dose-volume histogram, one curve per structure, with a scrub cursor (Ground-Truth solid / new dotted).
- Dose statistics — Dmax / Dmean / D95 and dose-to-volume / volume-to-dose queries (%, cc).

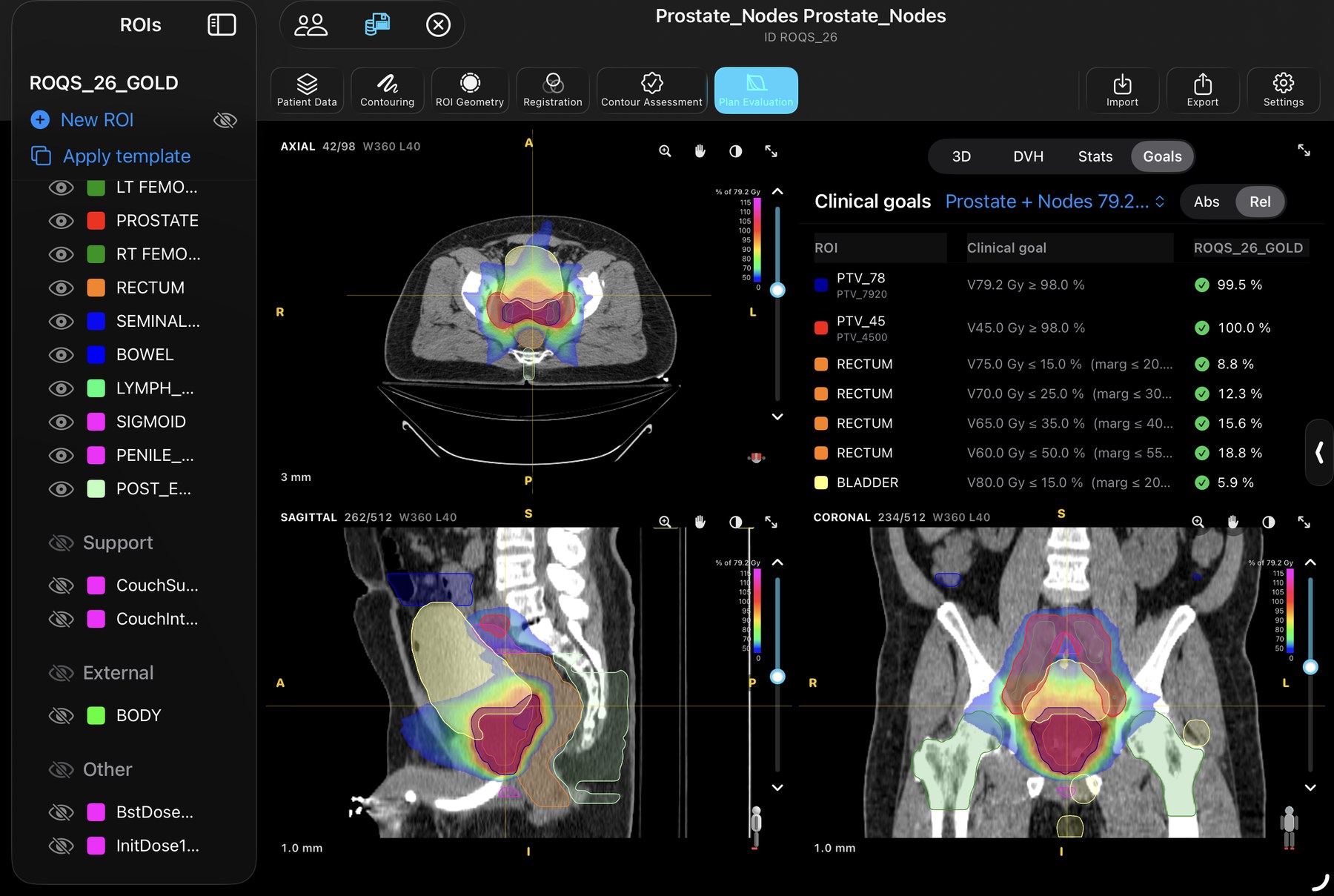

- Clinical goals — templated goal tables, pass / fail against the DVH.
- Cross-image-set dose summation through a saved registration.
- Deformed (NON_RIGID) dose is detected and evaluation is safely disabled.
Viewing & display (all tabs)
- Axial / sagittal / coronal / 3D panes, configurable layout, maximise a pane.
- Window / level — 12 built-in presets (Bone, Brain, Dental, Inner ear, Larynx, Liver, Lung, Mediastinum, Pelvis, Soft tissue, Spine, Vertebrae) plus custom presets.
- Zoom / pan, orientation markers, info & zoom chips.
- Contour line width, fill opacity, ROI volumes toggle — all in Settings.

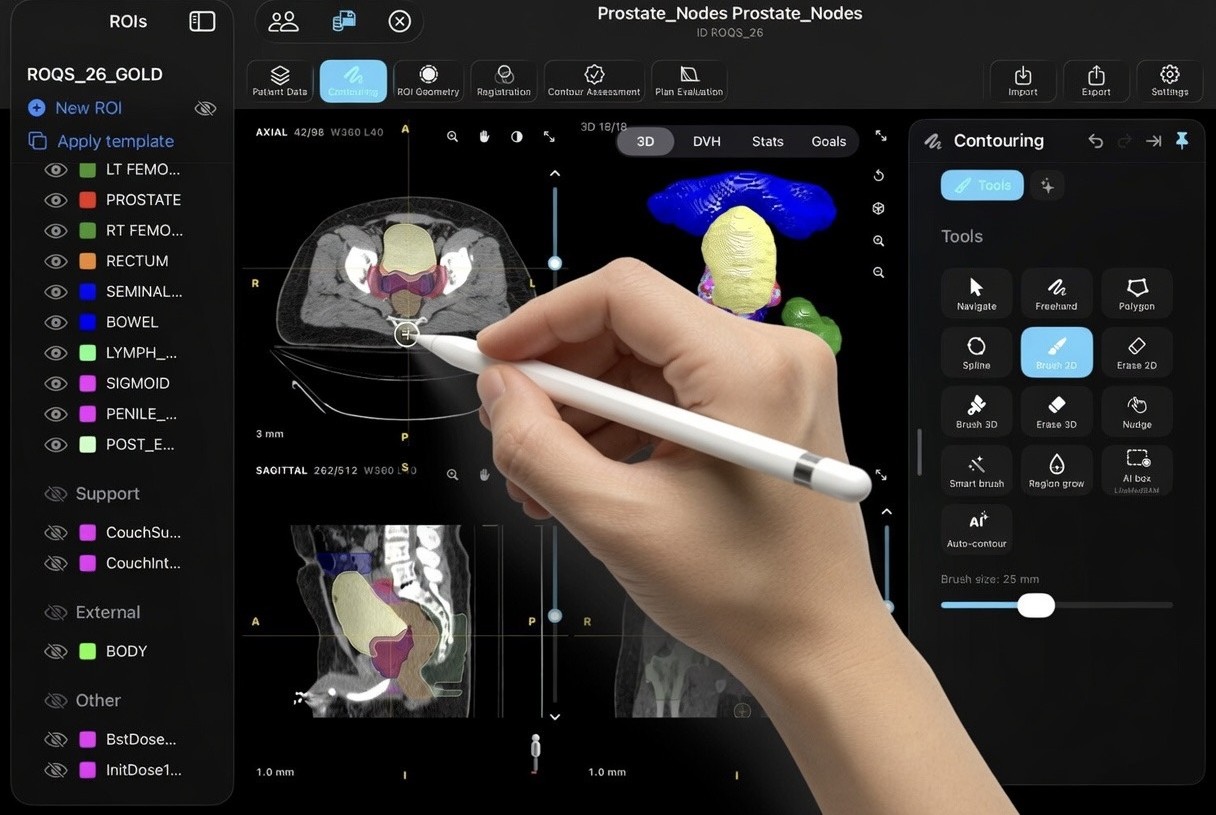

- Apple Pencil hover previews the brush before it touches down.
Export
- RT Structure Set (strict, ascending-tag-order, RDP-simplified for DCMTK / Orthanc compatibility), default name "RadContour RTS".
- Spatial Registration (REG), forward and inverse.
- Anonymise on export (Patient Name / ID → ANONYMOUS; UIDs retained).
- Send to a configured node via C-STORE, or export to a Files folder.
Accounts, security & privacy
- Login at app open — three roles: Administrator, Medical Physicist, Radiation Oncologist, with a fixed capability split.
- PBKDF2-SHA256 credentials in the Keychain; failed-login throttling; one-time recovery code.
- Idle auto-lock (default 15 min), lock-on-background, optional Face ID — a UI lock that never discards unsaved contours.
- App-switcher privacy shield — no patient data in the multitasking snapshot.
- Encrypted at rest — patient store in the private container; encrypted, PHI-free diagnostic log with per-user attribution.
- No analytics, no third-party SDKs, no telemetry. Patient imaging is processed on device and never sent to the developer.
Access & subscription
- Free — up to 10 cases imported from Files, review in axial, sagittal, coronal, 3D and cine, and six hand tools (Navigate, Freehand, Polygon, Spline, Brush 2D, Erase 2D). Restoring a backup is always free.
- RadContour Pro — adds the advanced brushes, AI auto-contouring, ROI geometry, registration and fusion, contour assessment, plan evaluation, DICOM networking, export, structure templates, backup and unlimited cases.
- 7-day free trial on every Pro plan, then Monthly (€19.99) or Yearly (€149.99).
- Monthly with a 12-month commitment (€14.99) — the annual price paid monthly (iPadOS 26.4+).
- Access codes — device-locked, owner-issued codes grant a set number of days (used for evaluation programmes).
Requirements
- iPad with an Apple M-series chip (M1 or later) — the on-device AI, 3D rendering and dose display need it.
- iPadOS 26 or later.
- Apple Pencil strongly recommended for contouring.
Technical documentation
The DICOM Conformance Statement documents exactly which services, SOP classes, transfer syntaxes and attributes RadContour supports — including its known limitations and deliberate deviations. It is written for imaging network architects and integrators connecting RadContour to a PACS or treatment planning system.
DICOM adherence does not by itself guarantee interoperability. This document supports a first-level comparison; it does not replace validation testing against the specific systems you intend to connect.
